ML-R CAN Bus adapter (mrm-can)
Ukratko
CAN Bus transceiver. Može se spojiti na Arduino, ARM ili druge mikrokontrolere, koji imaju ugrađen CAN Bus, ali ne i transceiver (u pravilu je tako).
Cijena:
5,07 €, PDV uklj
Kupi
Osobine
Ulazni napon.
|
3.3 + 5 V. |
Izlazi.
|
Izlaz iz CAN Bus transceivera. |
Ulazi.
|
Mikrokontrolerov CAN Bus TX i RX. |
Status LED.
|
Ne. |
Stardardizirani format.
|
Da. Više detalja ovdje. |

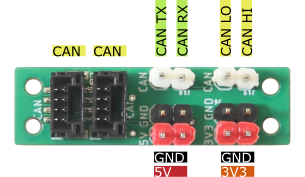

Spajanje
Connect CAN RX and TX to a microcontroller that doesn't have a transceiver. If the CAN Bus is already 5 V powered, it will not be necessary to supply 5 V to this board. Connect 3.3 V and GND.
