Prerequisites

If not already done so already, install Arduino software and make basic connections, as described in page for MRMS ESP32: Arduino, IMU, eFuse, BT, WiFi, CAN Bus (mrm-esp32). This setup is convenient, but it is not mandatory. Read on and we will describe how to connect some other microcontroller and power supply.

This setup is necessary for the rest of ML-R system. If You want to try just this example, don't copy all the libraries but only directories "mrm-common" and "mrm-can-bus". They provide CAN Bus support, but again just for ESP32 microcontroller, ML-R or any other. If You want to use some other MCU, You will have to start its CAN Bus driver. If You do so, this example will work for that board, too.

Task

We will order the reflective array to start measuring reflected light's intensity and sending the result every few milliseconds.

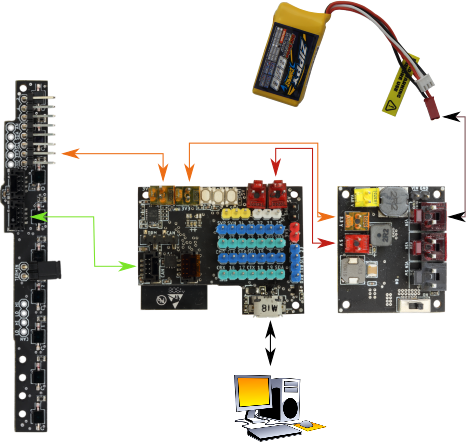

Connections

3.3 V supply can be made using a Dupont cable with 0.1" plugs. If there is only one sensor, You will be able to use Molex KK254 header of the MCU board, like in the right picture. If You have more of them, an adapter will be handy, like ML-R Distribution Pins 3x Passive (mrm-distrib-c).

However, this bus is not only intended for ML-R devices, but for any other CAN Bus compatible. You can read here how to connect Your boards to ML-R CAN Bus.

Program

The program is not very long, but it hides some of the details in Mrm_can_bus class:

#include <mrm-can-bus.h>

#define COMMAND_REF_CAN_SENDING_SENSORS_1_TO_3 0x06
#define COMMAND_REF_CAN_SENDING_SENSORS_4_TO_6 0x07
#define COMMAND_REF_CAN_SENDING_SENSORS_7_TO_9 0x08
#define COMMAND_SENSORS_MEASURE_CONTINUOUS 0x10

Mrm_can_bus can;

uint8_t data[8];        // Message content: 8 bytes
uint16_t reading[9];    // Measurement results

void setup() {
  Serial.begin(115200);

  data[0] = COMMAND_SENSORS_MEASURE_CONTINUOUS;  // First byte of the content
  for (uint8_t i = 0; i < 8; i++)
    can.messageSend(0x160 + 2 * i, 1, data);
}

void loop() {
  // Receive a message
  uint8_t startIndex;
  CANBusMessage* msg = can.messageReceive();
  if (msg != NULL){
    switch (msg->data[0]) {
    case COMMAND_REF_CAN_SENDING_SENSORS_1_TO_3:
      startIndex = 0;
      break;
    case COMMAND_REF_CAN_SENDING_SENSORS_4_TO_6:
      startIndex = 3;
      break;
    case COMMAND_REF_CAN_SENDING_SENSORS_7_TO_9:
      startIndex = 6;
      break;
    default:
      startIndex = 0xFF;
    }

    for (uint8_t i = 0; i <= 2 && startIndex != 0xFF; i++)
      reading[startIndex + i] = (msg->data[2 * i + 1] << 8) | msg->data[2 * i + 2];
  }

  // Display results
  static uint32_t ms = 0;
  if (millis() - ms > 500){
    for (uint8_t i = 0; i < 9; i++)
      Serial.print(reading[i]), Serial.print(" ");
    Serial.println();
    ms = millis();
  }
}

setup() starts serial communication with PC so that Serial.print() can display the results. First we will use "data" array as payload for an outgoing message and so we set its first byte to COMMAND_SENSORS_MEASURE_CONTINUOUS. That's the command we'd like to execute. It will instruct the sensor to start sending measurement data continually. As You can have more than one reflective array of this kind in Your CAN Bus, each is supposed to listen to just one message id. The whole range is covered by the loop that follows: 0x160, 0x162,..., 0x16E. You can change address the sensor listens to but You may not know how the one You have is set up. So, we start them all.

loop() receives messages. You should be familiar with CAN Bus message structure to understand data sent and received. When a message is received, the program will check first byte of the payload to see if it is a measurement result. If it is, it will decode the results. A CAN Bus message can hold up to 8 bytes of data. That is not enough to transfer 9 analog readings, consisting of 2 bytes each. That is the reason the results will arrive split in 3 messages. switch() command will determine which of the 3 messages arrived and will reconstruct the readings it conveys in the for-loop that follows. In the end, another for-loop will display the results.

Note that the program is intended to be simple so will work only when a single MRMS reflectance sensors 9x, CAN, analog, I2C (mrm-ref-can) sensor is connected. If there are more of them, You will have to determine which one sent the results, according to message id, and reconstruct its reading array, which will have to a 2-dimensional array, instead of 1-dimensional, like here. Also note that, if a sensor contains less than 9 phototransistors, the unused ones will return results which are to be discarded.

You can use an oscilloscope or a logic analyzer to check the signals.

The program uses mrm-can-bus library which can be found in C:\Users\<Your login name>\Documents\Arduino\libraries\mrm-can-bus\src. Open mrm-can-bus.cpp in an editor. Notepad++ is a good choice. If You want to change bus speed from the default 250 kbps, find line with "CAN_TIMING_CONFIG_250KBITS" and change the constant. If You like to have messages' content displayed, change "#define VERBOSE 0" into "#define VERBOSE 1". This library is based on Espressif's native driver so Espressif original documentation will give You all the information.

If You use ML-R CAN Bus devices, by far the easiest option for CAN Bus usage will be to stick to the ML-R framework which takes care about messaging so CAN Bus layer is not exposed at all. When You demand MRMS reflectance sensors 9x, CAN, analog, I2C (mrm-ref-can) to return reflected light intensities, You just call a function. The framework takes care that the reasonably fresh result is supplied. The details of this work are not so easy to replicate.

Here is the complete CAN Bus interface:

Command	MCU -> sensor	Sensor -> MCU	Comment
Calibration	0x09		Calibrate the sensor and store the values in its internal flash. Calibration determines the lowest and highest value each phototransistor measures.
Calibration data request	0x0D	6 messages	The sensor will send calibration data it stored. Power loss doesn't erase the data. Calibration data will be delivered in 6 messages. Sample code is included in MRMS_ESP.ino code, which can be download from Github.
Firmware	0x19	0x1A LowByte HighByte	Firmware version = (HighByte << 8) & LowByte.
FPS	0x30	0x31 LowByte HighByte	Frames Per Second (sensor's local loop frequency) = (HighByte << 8) & LowByte.
Id change	0x40 NewId		Changes message's id the sensor listens to. It is close to its address. Valid NewId values are 0 - 7. Each value chooses addresses in the ranges: 0x160, 0x162,..., 0x16E. 0 chooses 0x160, 1 0x162, etc.
Alive	0xFF id	0xFF	If the sensor with address "id" is present, it will return the message.
Reset	0x1B
Measure once	0x11	0x13 LowByte HighByte	Measures just once and returns the result. Results are returned in 3 messages, as described in the code example above.
Measure continuously	0x10	0x13 LowByte HighByte	Initiates measuring and returning of the reflected light's intensity each few ms, if the distance changes. Results are returned in 3 messages, as described in the code example above.
Stop measuring	0x12

CAN Bus limitations

For 1 node You will have no problems. If You plan to have many of them, check this page.
